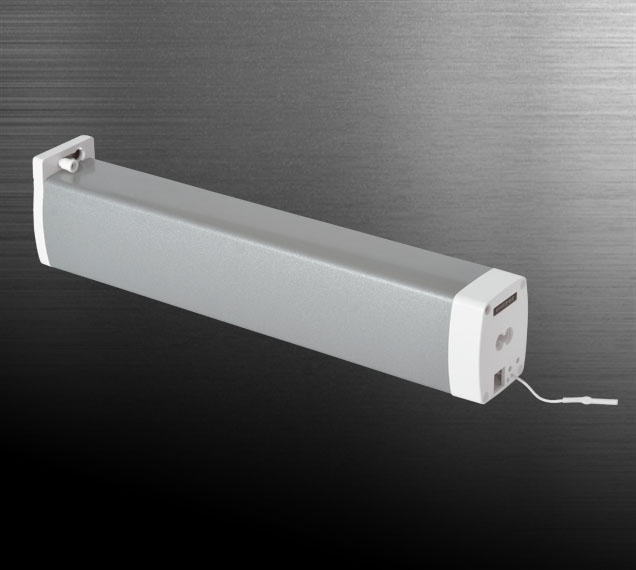

SK-ZN04 Smart curtain
- Function Features
- Technical Reference
- Schematic Diagram
- Download
● Three control methods: remote control, smart host, smart remote
● Self-selection of three operations: open, close and stop.
● Light open and close design, smoother operation.
● Pull start function, support forward, reverse and jog, linkage control.
● Voltage range: AC100 ~ 240V; Rated voltage: AC220V / 50Hz
● Rated power: 24W
● Rated torque: 2.0N · m
● Movement speed: 14cm / s
● Working system; S2 12min
● Track load: up to 50Kg
● Wireless mode; LORA protocol
● Wireless distance: ≥1000m (open area)
● Working environment; temperature: 0 ~ 45 ℃; humidity: ≤80% RH non-condensing
● Net weight of motor; about 1.5Kg
● Motor size; 305x58x50mm (length x width x thickness)
● Body material: aluminum
