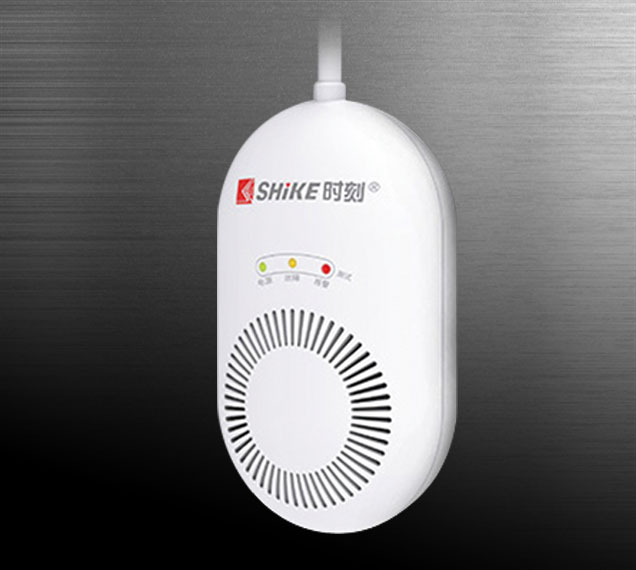

SK-ZN16 Gas alarm
- Function Features
- Technical Reference
- Schematic Diagram
- Download
● Exquisite appearance, highlighting the beauty with oval and smooth lines
● Dual front and rear air inlets to accurately detect flammable gas leakage to prevent false alarm
● Imported buzzer, the alarm sound level is more than 80dB
● Easy installation, optional linkage shut-off valve
• Working voltage: AC220V ± 10%, 50Hz
• Detection gas: natural gas (CH4), coal gas, oil field gas, biogas
• Static current: ≦ 100mA (DC12V)
• Alarm current: ≦ 150mA (DC12V)
• Buzzer sound pressure: ≧ 80dB (1 meter in front)
• Working environment: -10 ℃ ~ + 55 ℃; relative humidity: ≦ 95% RH
• Stability: Long-term working alarm concentration error is not greater than ± 5% LEL
• Repeatability: Repeated test alarm concentration error is not greater than ± 3% LEL
• Alarm concentration error: ± 3% LEL
• Alarm method: sound and light alarm, normally open / normally closed optional
• Sampling method: natural diffusion
