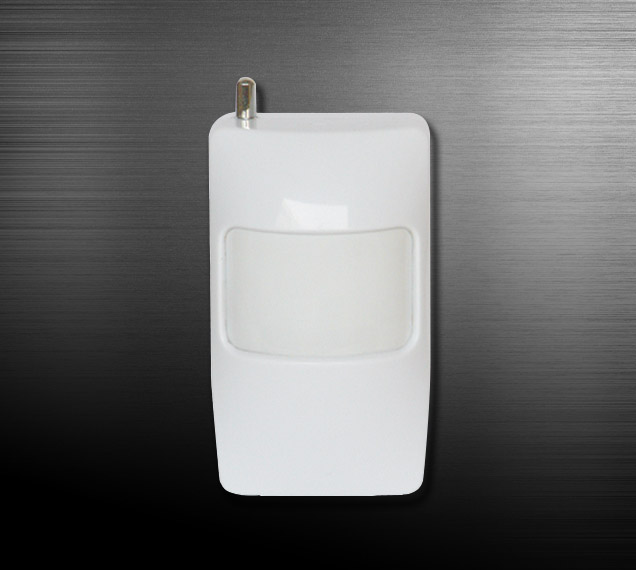

SK-160L Passive Infrared Detector(Wireless Intelligence)
- Function Features
- Technical Reference
- Schematic Diagram
- Download
◆ Wireless transmission featuring new technology and farther distance
◆ Combination of micro-power consumption chip and advanced power-saving technology , extending working life of battery
◆ Automatic temperature compensation and superior resistance to false alarm
◆ Sensitivity adjustable
◆ SMD technique with excellent resistance to interference of EMI and RFI
◆ Alarm indicator with optional ON/OFF
◆ Low voltage detection and alert
◆ Combination of micro-power consumption chip and advanced power-saving technology , extending working life of battery
◆ Automatic temperature compensation and superior resistance to false alarm
◆ Sensitivity adjustable
◆ SMD technique with excellent resistance to interference of EMI and RFI
◆ Alarm indicator with optional ON/OFF
◆ Low voltage detection and alert
| Work voltage | DC 3V (4 AAA 1.5V batteries) | Current consumption | ≤80uA on standby , ≤10mA in alarming |
| External power(optional) | DC 9V | Detecting space | 12m/120 degrees |
| Installation height | 2m~2.5m | Installation elevation | Wall-hangling |
| Ambient Temperature | -10℃~50℃ | Alarm output | Wireless output |
| Sending distance | ≤500m (at open area) | Sending frequency | 315m(433m optional) |
