Product
Telephone network alarm system
SK-120 Telphone Help Beeper
- Function Features
- Technical Reference
- Schematic Diagram
- Download

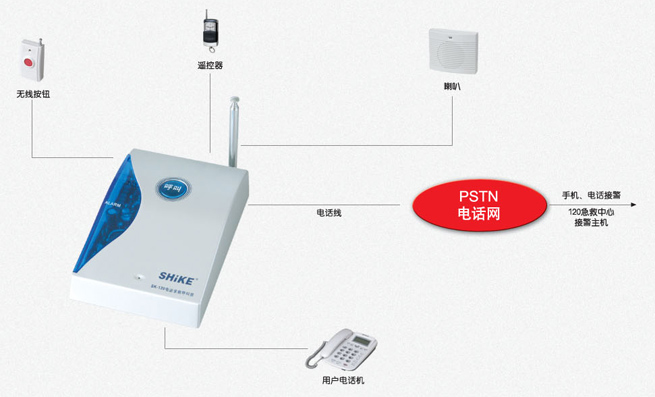

◆ Use the advanced microcomputer and micro power chip, small size and beautiful appearance. u Directly connect with telephone line. No need to connect power.
◆ Can be set to receive the signal of remote controller or wireless detector.
◆ Built-in mike and external speaker can locally monitor and speak.
◆ Can use Call key on the host or wireless button, wireless switch and remote controller to send mayday call.
◆ Can store 8 groups telephone number.
◆ Can be online with SHIKE 120 network center.
◆ With testing function, can be online with network center to test anytime.
◆ Can be set to receive the signal of remote controller or wireless detector.
◆ Built-in mike and external speaker can locally monitor and speak.
◆ Can use Call key on the host or wireless button, wireless switch and remote controller to send mayday call.
◆ Can store 8 groups telephone number.
◆ Can be online with SHIKE 120 network center.
◆ With testing function, can be online with network center to test anytime.
| Alarm Communication Means | PDTN dial to send alarm message | Applicable Temperature | -10～55℃ |
| Alarm Communication Protocol | SHIKE | Applicable Humidity | Less than 90% |
| Alarm Response Time | 200～800ms | Installation Means | hang type or desktop |
| Arm/disarm Means | Remote controller and the call key of the host | Case Material | Fire Protection ABS Plastic Material |

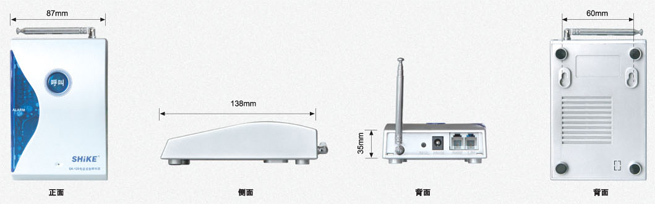

| Programming | Telephone keys and remote programmed | （L·W·H）Seize | 87×138×35mm |
| Wireless Receiving | 315M(433M for optional) | Weight | About 0.44kg |
| Power Supply Means | Connect telephone line and no need to connect power |
